DDW Ghost Track System Hidden Barn Door Hardware

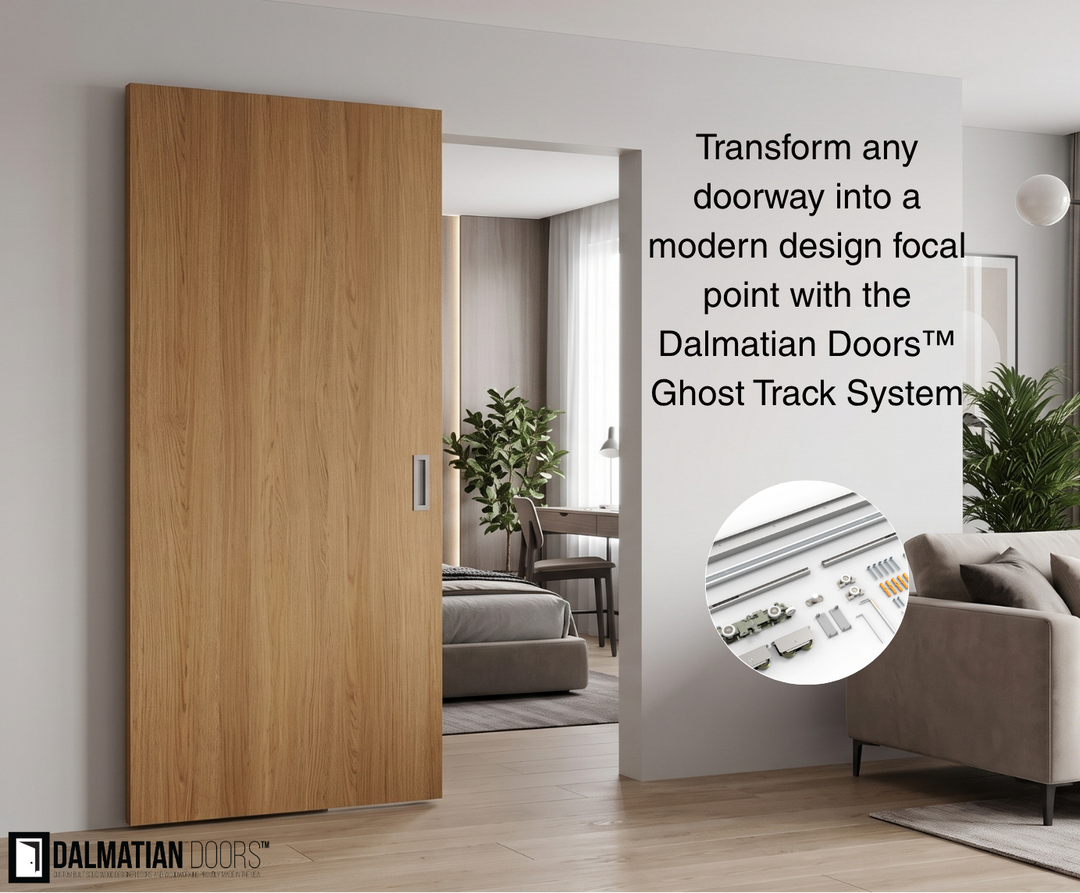

Transform any doorway into a modern design focal point with the Dalmatian Doors™ Ghost Track System. Engineered to completely conceal the track and rollers behind the door panel, this hardware creates a seamless, floating sliding door effect that elevates high-end residential and commercial interiors.
Specifications & Inclusions:

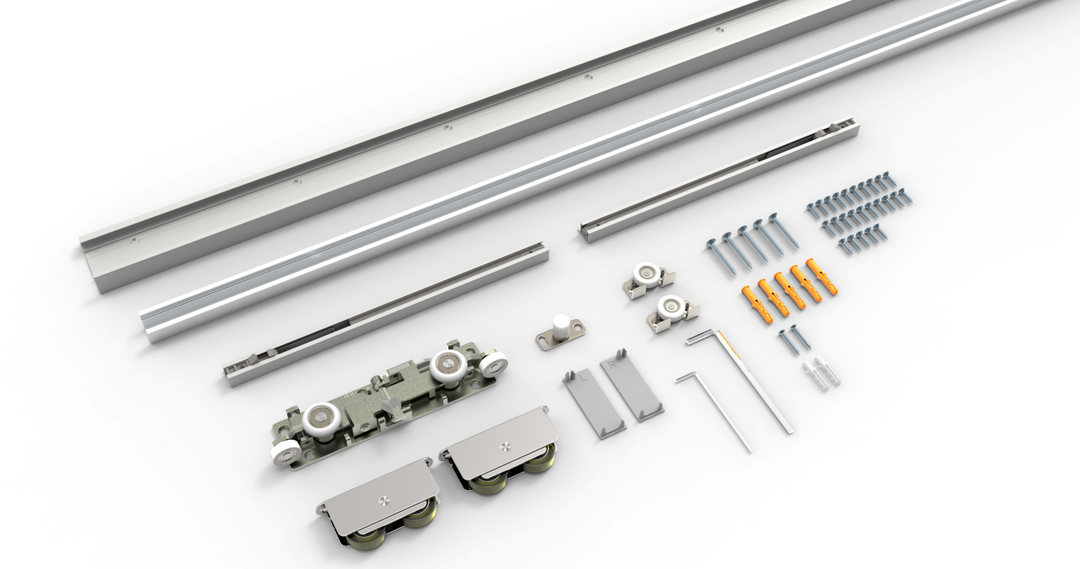

Includes: Full hardware kit including 2 soft-close mechanisms (one for each side).
Door Weight Capacity: Max 176 lbs (80 kg).
Recommended Door Sizing:
-Height: Overall Opening Height + 3 inches
-Width: Overall Opening Width + 10 inches
Door Width Limits:
-Minimum Door Width (With Soft Close): 32 inches
-Minimum Door Width (Without Soft Close): 10 inches
-Recommended Maximum Door Width: 48 inches
Track Length & Motion:
-Fixed Running Track Length: 47 inches
-Width Allowance: Door panels can exceed 47 inches in width (up to the recommended 48-inch max), though total travel distance remains limited by the fixed 47-inch track.
The Dalmatian Doors™ Ghost Track System Hidden Barn Door Hardware (DDW-34-1200) delivers a sleek, floating sliding door effect by completely concealing the track mechanism behind the panel. Priced at $359.99, each kit comes complete with two soft-close mechanisms to ensure quiet, effortless operation on both sides. Engineered for solid panels weighing up to 176 lbs, this system provides high-end architectural appeal for modern residential and commercial spaces.
Sizing & Track Compatibility:
Designed around a fixed 47-inch running track, the system accommodates door panels with a recommended maximum width of 48 inches (though travel distance remains bounded by the track length). Minimum panel width requirements are 32 inches when installed with the included soft-close mechanisms, or 10 inches for standard non-soft-close configurations.
Door Sizing Guide:
For optimal coverage and proper frame clearance, ideal door panel dimensions should be calculated as Opening Height + 3 inches and Opening Width + 10 inches
| Qty | Continental US Shipping Rate *East of the Rockies |
Continental US Shipping Rate *West of the Rockies |
Alaska & Hawaii Shipping Rate |
| 1 | $125 | $225 | $425 |
| 2 | $150 | $250 | $450 |
| 3 | $175 | $275 | $475 |
| 4 | $200 | $300 | $500 |
| 5-10 | $225 | $325 | $525 |
| 11-15 | $250 | $350 | $550 |
| 16-20 | $275 | $375 | $575 |
| 21-24 | $300 | $400 | $600 |
| 25+ | FREE | FREE | FREE |
| *West of the Rockies = AZ, CA, CO, ID, MT, NV, NM, OR, UT, WA, WY | |||
