Name: Bypass Door Soft Close Add On
Brand: DALMATIAN DOORS™ and Woodworking
SKU: Bypass Door Soft Close Add On
Price: 149.99 USD
Availability: InStock

Bypass Door Soft Close Add On - DALMATIAN DOORS™ and Woodworking

SKU: Bypass Door Soft Close Add On

Starting at

Starting at$149.99

Product Datasheet Installation Guides

Upgrade your sliding door system with these high-quality Soft Close Aluminum Sliding Door Hardware, designed to provide smooth, controlled closing action for doors weighing between 120 lbs – 150 lbs each. These are ideal for By-Pass and Bi-Parting Sliding Door Applications, ensuring a gentle and quiet close every time.

Soft Close Add On

For 1 Door (min 16” wide door panels) ($149.99)

For 1 Door (both directions min 32" wide door panels) ($299.98)

For 2 Doors (min 16” wide door panels) ($299.98)

For 2 Door (both directions min 32" wide door panels) ($599.96)

For 3 Doors (min 16” wide door panels) ($449.97)

For 3 Door (both directions min 32" wide door panels) ($899.94)

For 4 Doors (min 16” wide door panels) ($599.88)

For 4 Door (both directions min 32" wide door panels) ($1199.76)

Total Price: $149.99

SKU: Bypass Door Soft Close Add On
Weight Capacity: Designed for Doors Weighing 120 lbs – 150 lbs Each
Minimum Door Width (Single Device): Minimum Door Width (Single Soft Close Device): 16"
Minimum Door Width (Two Devices for Both Directions): Minimum Door Width (Two Soft Close Devices for Both Directions): 31"
Soft-Close Mechanism: Soft-Close Mechanism Slows Travel of the Door for a Smooth, Silent Close

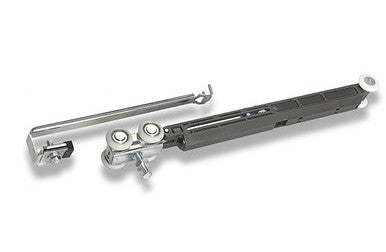

Description: Upgrade your sliding door system with these high-quality Soft Close Aluminum Sliding Door Hardware, designed to provide smooth, controlled closing action for doors weighing between 120 lbs – 150 lbs each. These are ideal for By-Pass and Bi-Parting Sliding Door Applications, ensuring a gentle and quiet close every time.

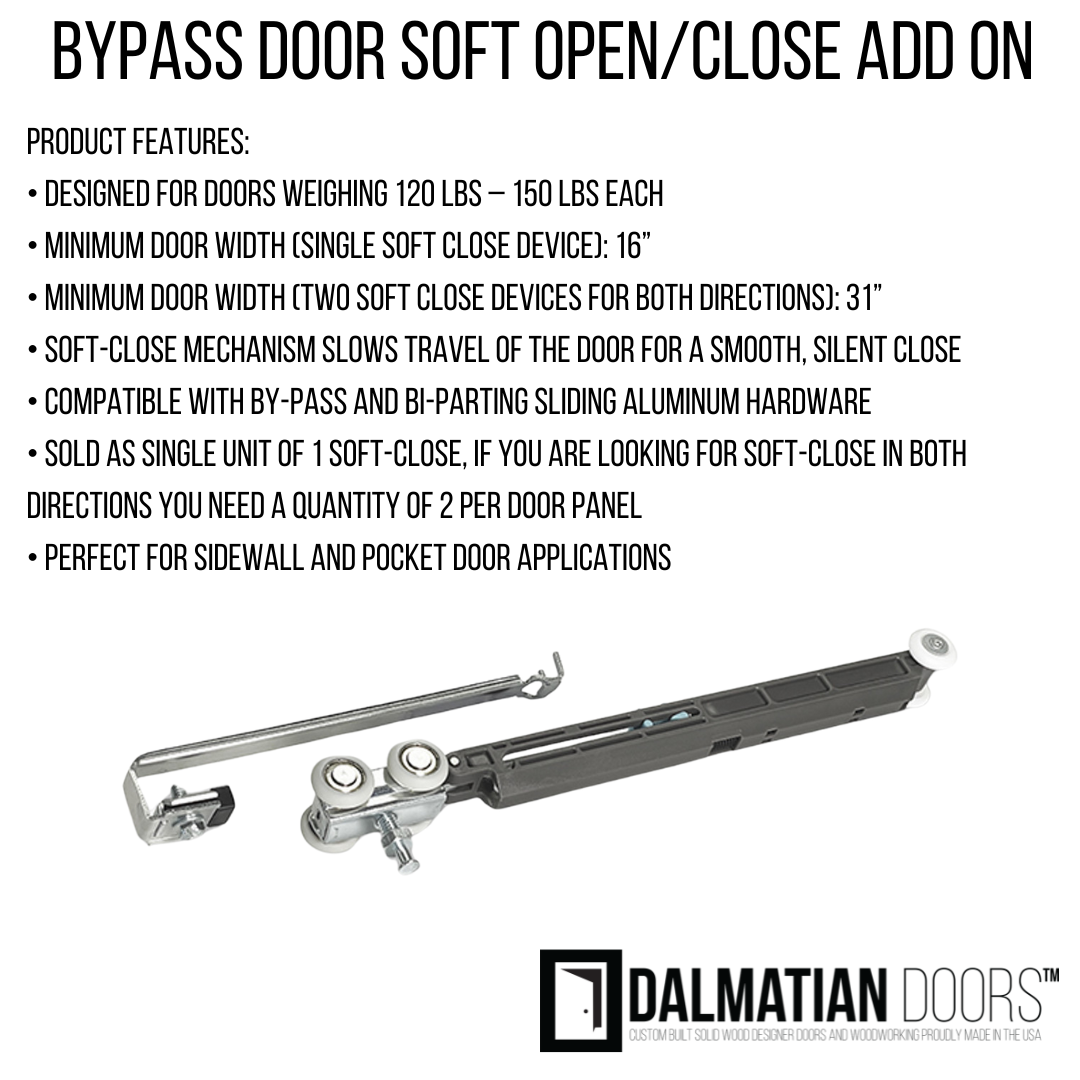

Product Features:
• Designed for Doors Weighing 120 lbs – 150 lbs Each
• Minimum Door Width (Single Soft Close Device): 16"
• Minimum Door Width (Two Soft Close Devices for Both Directions): 31"
• Soft-Close Mechanism Slows Travel of the Door for a Smooth, Silent Close
• Compatible with By-Pass and Bi-Parting Sliding Aluminum Hardware
• Sold as single unit of 1 Soft-Close, if you are looking for soft-close in both directions you need a quantity of 2 per door panel
• Perfect for Sidewall and Pocket Door Applications

Elevate the functionality and elegance of your sliding doors with this soft-close system. Ensure a seamless, quiet operation that adds both style and practicality to any room.

DALMATIAN DOORS™ and Woodworking interior doors are constructed of solid - NOT engineered - stile (vertical portion) and rail (horizontal portion) construction with options for wood or glass panels. Poplar, for years has been the paint-grade wood of choice for solid hardwood door companies, furniture makers and cabinet shops.

Paint grade doors ship primed white and stain grade options ship as raw wood ready to stain and/or paint.

Installation Guide

How It Mounts & Installation Overview

Door Plate Positioning: Attach the door plates 1-3/4" from the door edge.
Dampener Engagement: Pre-engage the soft close dampener by pushing the dampener trigger toward the 4-wheel roller hanger before inserting into the track. (Important: The dampener must be engaged, or the soft close will not work and may be damaged).
Track & Hanger Insertion: Insert the soft close unit into the track with the 4-wheel roller hanger entering first, then mount/hang the door and lock it in place.
Actuator Arm Mounting: Slide the door away from the end of the track and install the actuator arm inside the track 2-1/4" (or at your desired position) from the jamb.
Final Adjustment: Hand-tighten the actuator arm (do not use a power drill) ensuring it remains straight. Slowly close the door to verify it seals against the jamb and operates properly.
